Hänel Rotomat® Storage Carousel - Multifunction Carriers
The Hänel multifunction carriers provide tailored, flexible interior
configurations that can be easily adjusted to suit your individual
requirements and various item heights. This results in the highest
possible optimization of storage space.
An array of accessories, such as plastic containers, tool organizers,
custom trays for small items, and milling cutter holders, is available.
These accessories enhance the Hänel Rotomat®, turning it into an integrated
logistics system that lowers costs, optimizes space usage, simplifies
work processes, and reduces delivery times.
Call Us: 800 8596

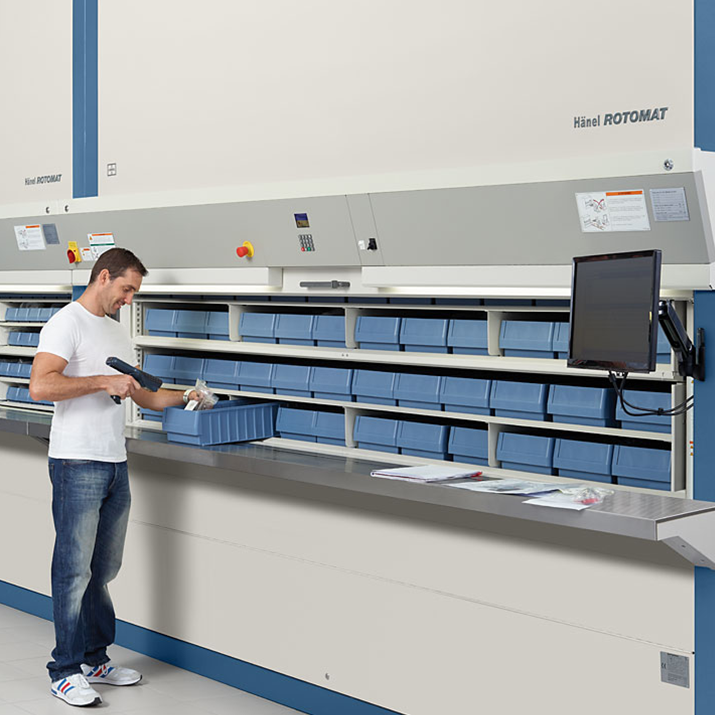

Hänel Rotomat® Storage Carousel
The Hänel Rotomat® storage carousel makes use of the available room height and creates up to 60 % more storage capacity thanks to its compact design. This means costly warehousing space can be used more efficiently. No more bending, ladder-climbing or walking long distances to search for and store parts or articles. The required items are brought automatically to the optimum ergonomic retrieval height.
Hänel Rotomat®
Leveraging its innovative compact design, the Hänel Rotomat® storage carousel maximizes available vertical space, enabling a remarkable 60% increase in storage capacity. We provide a customizable storage and provisioning solution that seamlessly integrates with your unique requirements.
Hänel Multifunction Carriers

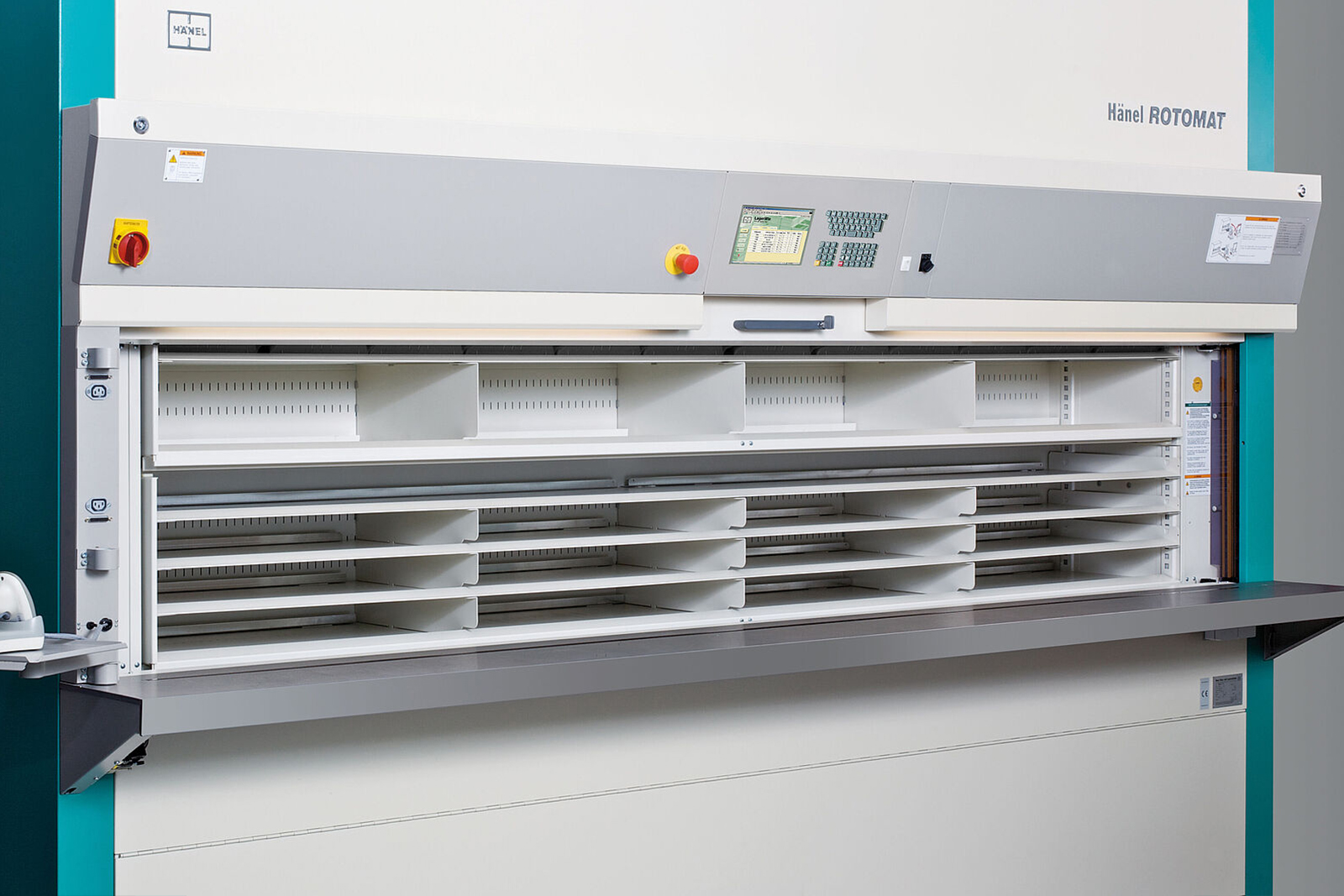

Multifunction carrier with different front of variants
Hänel Multifunction Carriers
Hänel Multifunction Carriers

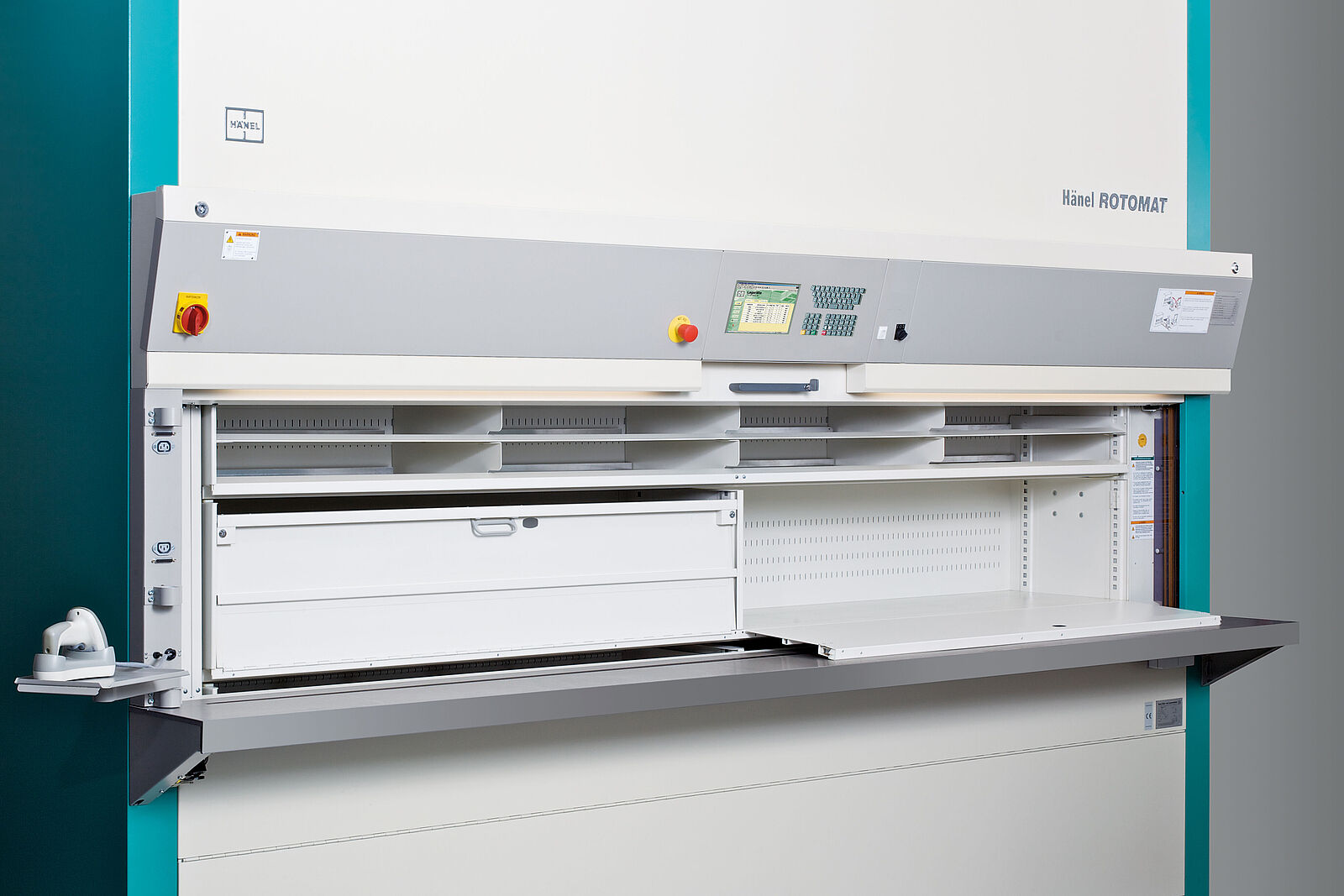

Multifunction carrier with drawers of different heights slotted into punched hole
Hänel Multifunction Carriers
Multifunction carrier with lowerable front walls
Hänel Rotomat® Storage Carousel Color Palette and Technical Data
| Rotomat® Model | 900/100 | 900/115 | 900/125 | 936 | 946 | 950 | 956 | 970 | 980 | 985S | 985 | 990 |
| Maximum payload per shelf in kg | 150 | 150 | 150 | 250 | 310 | 400 | 320 | 250 | 580 | 750 | 500 | 230 |
| Maximum payload per carousel in kg | 3.400 | 3.400 | 3.300 | 5.400 | 5.100 | 10.600 | 9.400 | 5.700 | 16.100 | 16.100 | 15.200 | 9.000 |
| Shelf depth in mm | 370 | 416 | 470 | 630 | 630 | 416 | 640 | 445 | 505 | 505 | 630 | 640 |
| Shelf width in mm | 2.243 2.838 |
2.243 2.838 |
2.243 2.847 |
2.915 | 2.915 | 2.870 | 2.870 | 2.915 | 2.750 | 2.750 | 2.750 | 2.870 |
|
Standard carousel width in mm (customized carousel widths possible) |
2.600 3.270 |
2.600 3.270 |
2.600 3.280 |
3.420 | 3.420 | 3.420 | 3.420 | 3.420 | 3.420 | 3.420 | 3.420 | 3.420 |
| Carousel depth in mm | 1.000 | 1.155 | 1.255 | 1.615 | 1.615 | 1.250 | 1.670 | 1.250 | 1.475 | 1.600 | 1.720 | 1.670 |
|
Equipment features (standard) |
||||||||||||
| Twin motor design / Soft start with pole-switching motors | depending on version | depending on version | depending on version | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Load imbalance warning device for payloads over 3 tons | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Light-barrier curtains compliant with DIN EN 15095 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Stable carrier suspension with 4-point sliding carriage principle | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Networking with IT systems via the controller | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Connection of barcode scanners | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Individual features | ||||||||||||
| Integrated storage management (no PC required) | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ |
| Customized finish | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ |
| Multiple access points on different floors | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ |
| 2nd safety circuit / Safety Bypass package | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ |
| Frequency converter for gentler, smoother start | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ | ✖ |
